A compact metal assembly required careful component positioning and localized joining within a small working area. JLYPT supported the startup with a practical build-and-review approach while protecting the customer’s product identity.
Small welded assemblyStartup supportPrototype-oriented workflowCustomer confidentiality protected
Project Overview
Turning separate small components into one stable assembly
The part combines a machined circular body with slender threaded rods. At this scale, the joining plan has to account for access, positioning, heat input, visible surfaces, and the relationship between each component.
JLYPT reviewed the supplied components around the customer’s intended configuration and produced a welded sample for evaluation. The customer and application remain unnamed by agreement.

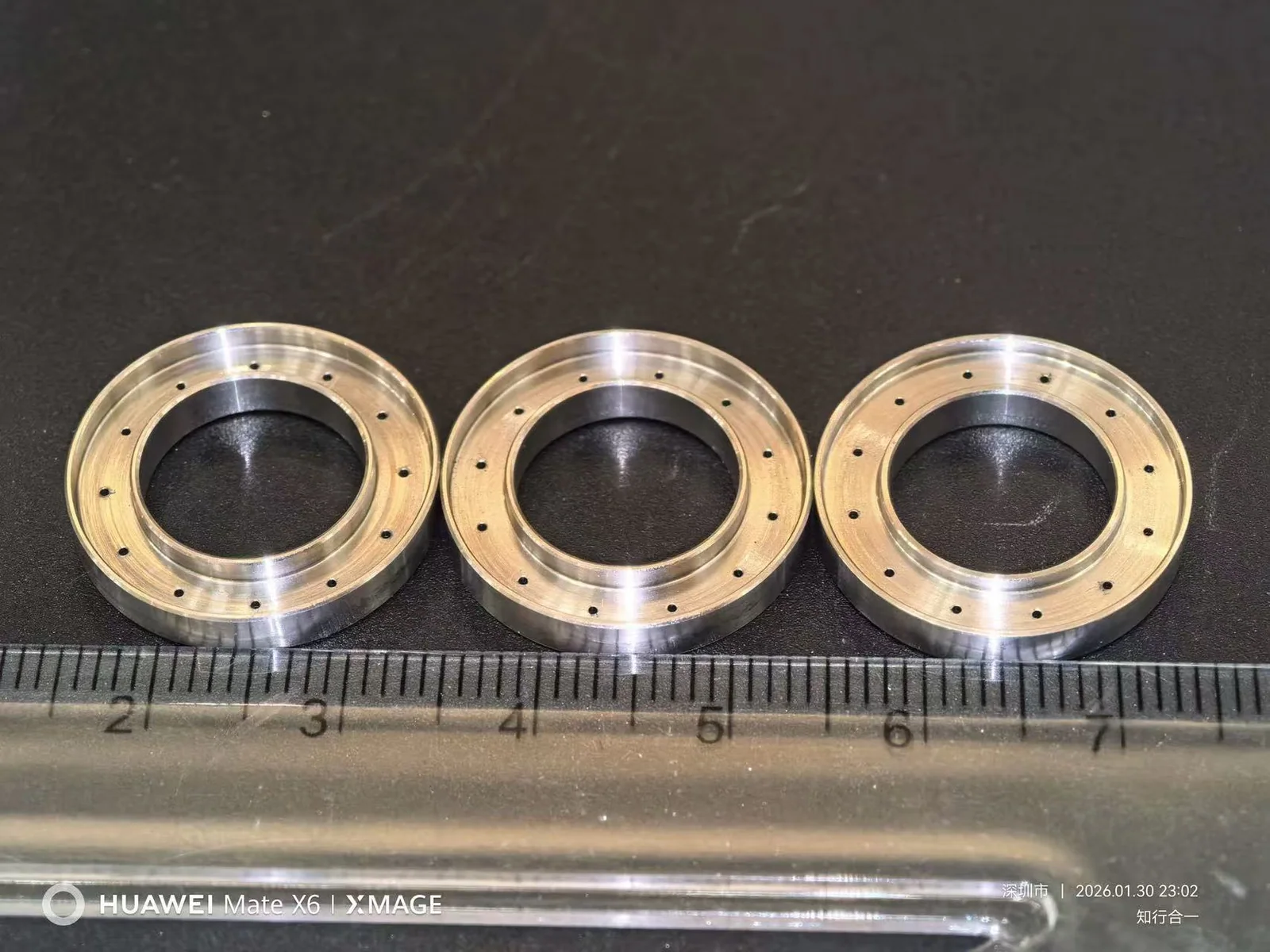

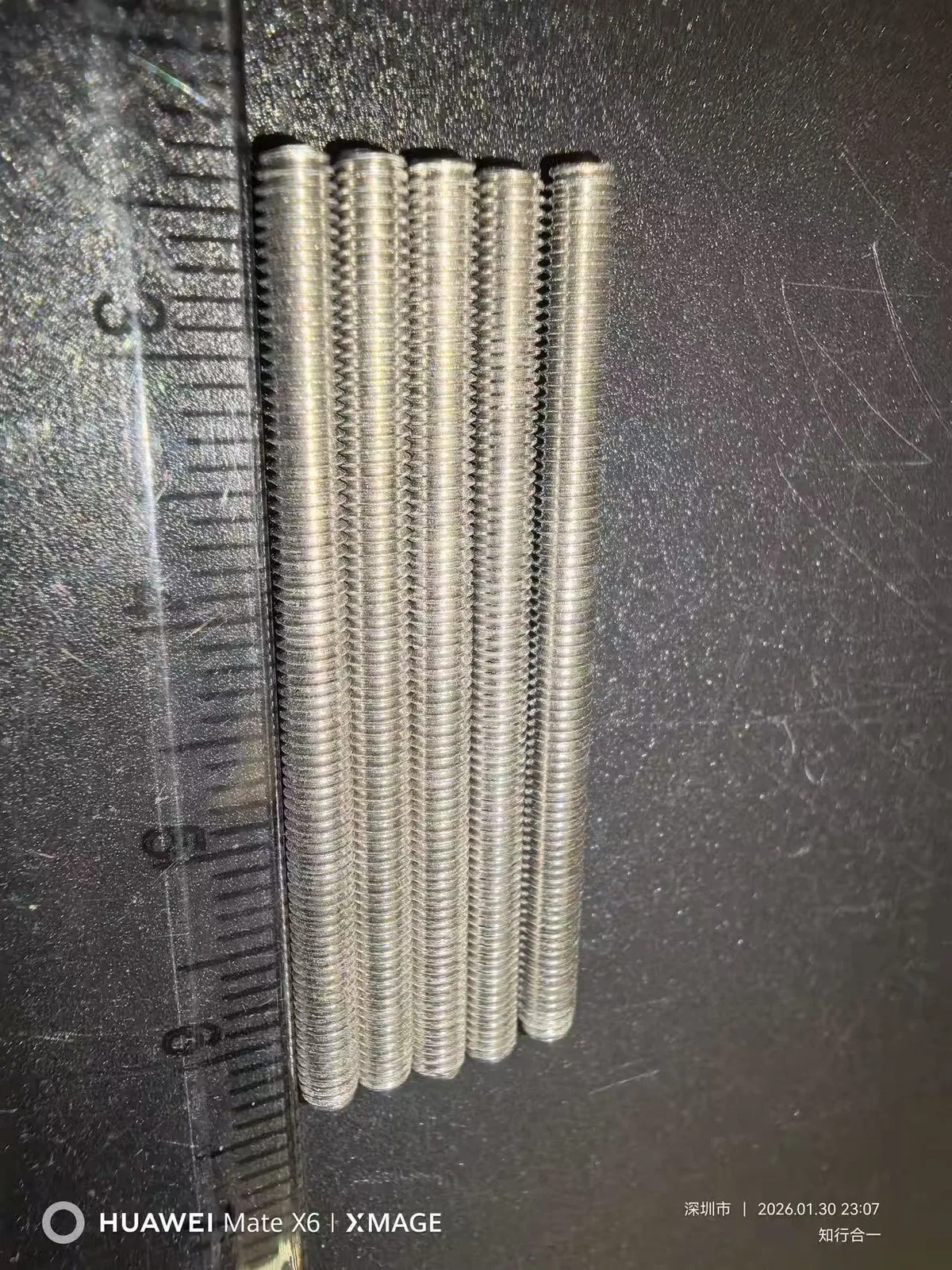

Threaded rods before weldingMachined circular bodies before welding
After welding · assembled sample

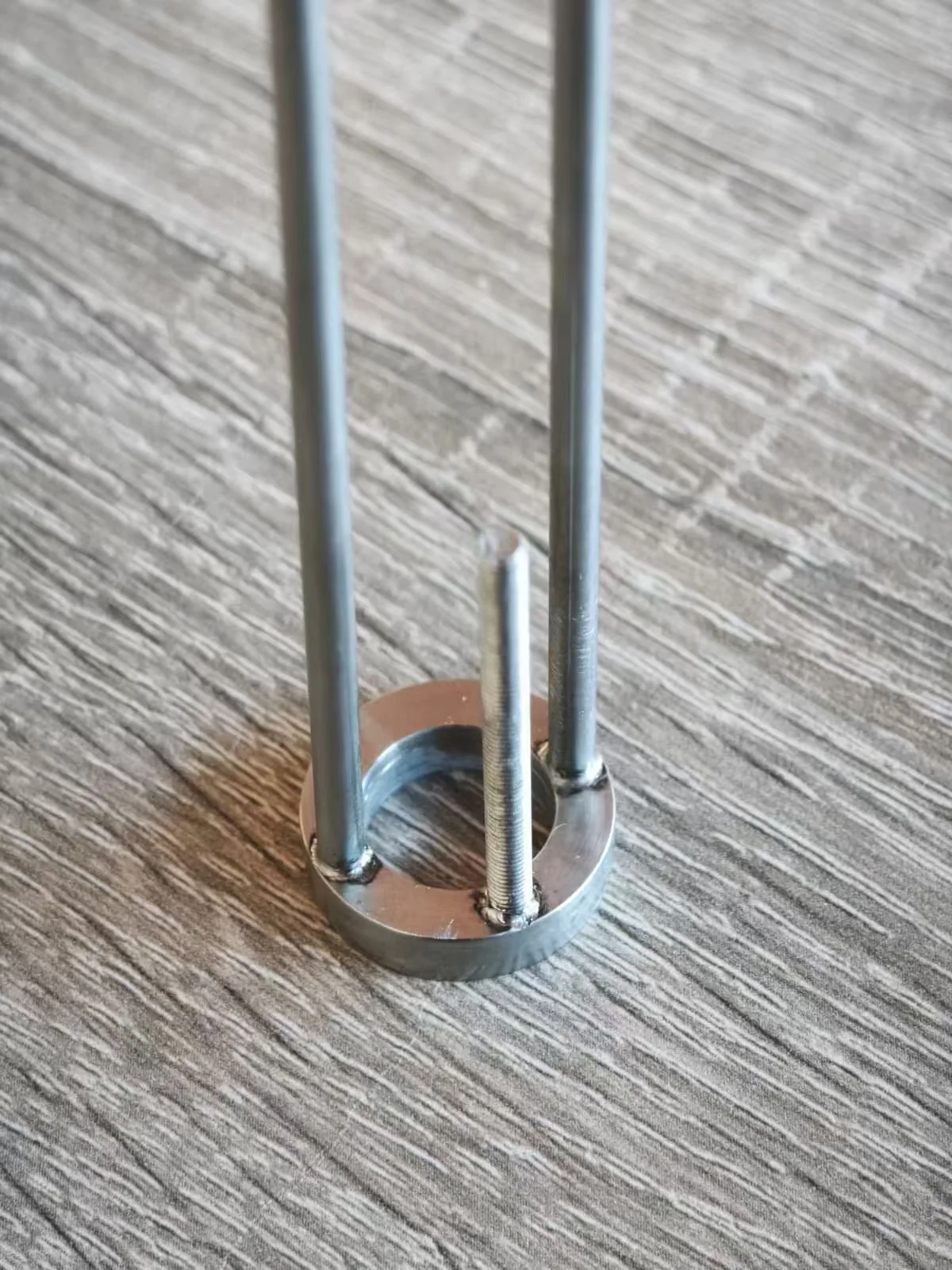

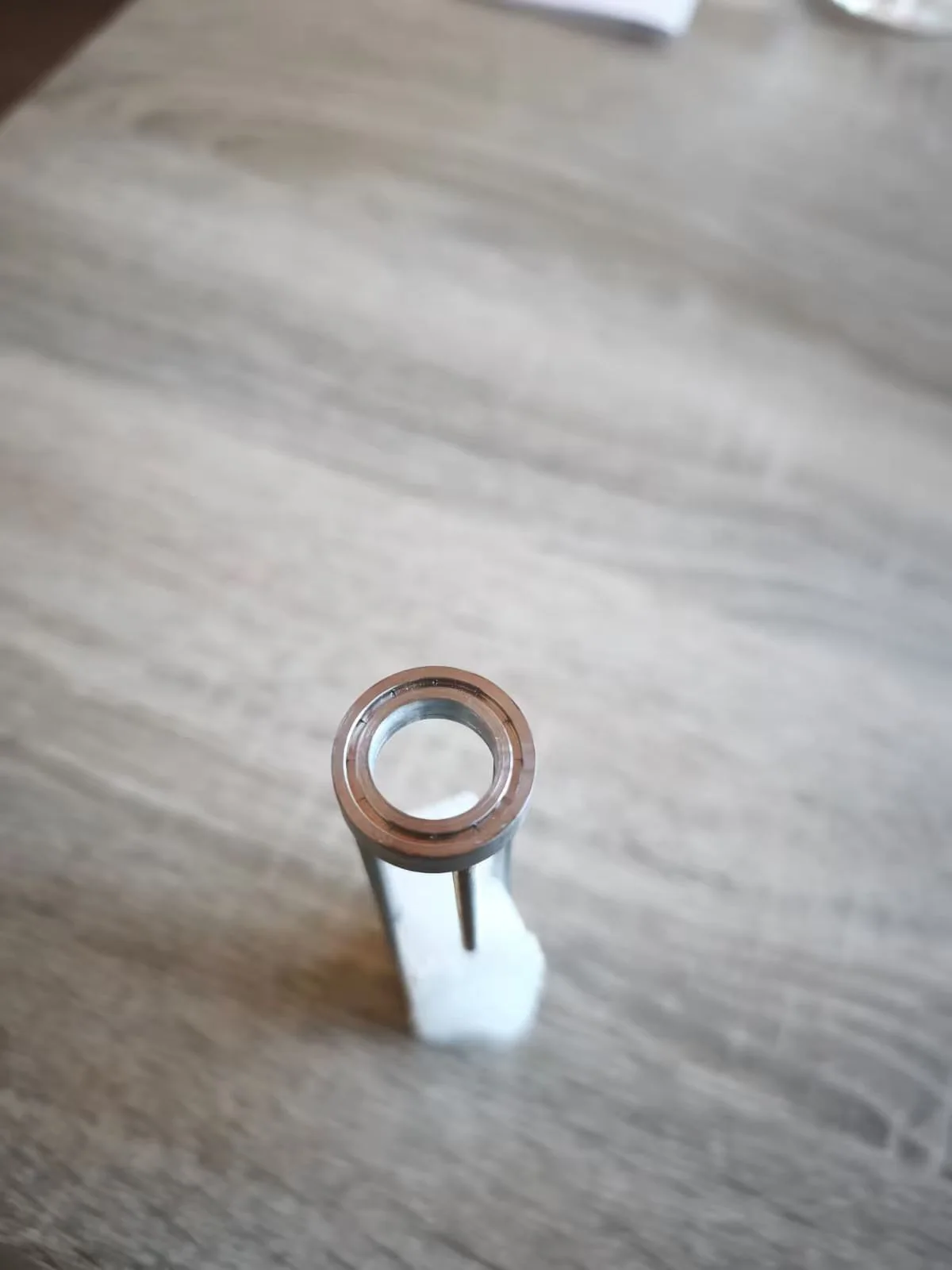

Overall assembled componentFront-face and opening detailLocalized weld-joint detail
Engineering Focus
What matters when welding a compact assembly
01 · POSITIONING
Hold the component relationship
Rods, threaded features, and the circular body must remain positioned around the intended assembly geometry while the joints are made.
02 · JOINING ACCESS
Work within a limited area
The joint plan must provide practical access without unnecessarily affecting adjacent surfaces or interfering with the component interfaces.
03 · SAMPLE REVIEW
Inspect before scaling
The assembled sample gives the customer a physical basis for reviewing fit, joint location, appearance, and any changes needed before repeat production.
Outcome
A physical assembly ready for customer evaluation
The completed sample brought the separate features together in the requested configuration and exposed the actual joint locations for review. For an early-stage company, this kind of tangible build helps move discussion from a concept toward specific, manufacturable revisions.
Future production requirements—including material, weld process, dimensional acceptance, inspection, finishing, packaging, and volume—would be confirmed from the customer’s controlled drawing and approved sample.
Project details are intentionally limited to protect customer confidentiality. No numerical performance, tolerance, material, certification, or production-volume claims are implied.
